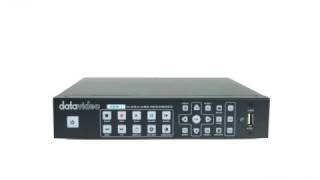

HDR-1

Standalone H.264 USB Recorder / Player

HDR-1 is a standalone H.264 USB recorder / player with redundant power system (UPS) that is portable and easy to use. It records high quality format video files (up to20 Mbps in MP4), which is ideal for capturing and archiving footage from worship seminars, corporate meetings, school announcements, lectures, or live concerts. It can also be used by broadcasters to create a web-optimized proxy recording.

Recorded files can be uploaded to YouTube or any website immediately after an event without needing to transcode, which makes it easy to share your content online. Front panel buttons make it easy to use. The record/pause feature allows users to record an event conveniently as a single file even if there is a break in proceedings.

  • Capture HD Video Up to 1080p30
  • Redundant Power recorder (UPS), will switch to power bank charging when main power is off (with power bank connected)
  • Works without a PC
  • Record Format: MP4 (H.264+AAC)
  • Record video to USB flash drive with NTFS file format
  • To ensure recording quality, recommend the write speed of the USB 3.0 thumb drive should be faster than 45 MB/s
  • Instant & Timer Recording
  • GPI and RS-232 control supported
  • Supported playback file formats: MP4 (H.264+AAC)
  • Support 3D video Recorder (Top-and-bottom, Side-by-side Half)
  • Built-in video Editor
  • HDMI 1.4b Compatibility
Interfaces
Video Input HDMI Type A x 1
Video Output HDMI Type A x 1
DC IN DC Jack
Storage USB Port x 1 (Female Type A / USB 2.0 Compliant)
Control RS-232 / GPI (Pulse Trigger: Record Start / Stop)
Coding Spec
Container MP4 H.264 + AAC
Profile Main/High Profile 480i60 Main profile Level 4.1
480p60 Main profile Level 4.1
576i50 Main profile Level 4.1
576p50 Main profile Level 4.1
720p50 Main profile Level 5.0
720p60 Main profile Level 5.0
1080i50 High profile Level 4.1
1080i60 High profile Level 4.1
1080p50 High profile Level 5.0
1080p60 High profile Level 5.0
Video Coding H.264 4:2:0 HD: 1080P 20Mbps/18Mbps/15Mbps
HD: 720P 20Mbps/15Mbps.10Mbps
HD: 1080i 15Mbps/12Mbps/10Mbps
SD: 576P/480P/576i/480i 7.5Mbps/5Mbps/3Mbps
Audio Coding AAC Stereo 16 bit 48KHz 128Kbps
USB Storage Device Condition
File System NTFS
Storage Speed Minimum write speed > 45 MBytes
Features
Recording Function Record, Play/Pause, Fast Forward, Rewind, Previous Clip, Next Clip, Recall Slow Motion
Video and Audio Display/ Record Mode
Pass through Recording Mode Record Format Playback Mode
Video Audio Real Time Mode Standard Mode Audio
Video
1080P@24 Auto: PCM 2Ch

Manually: RAW 5.1Ch

Dolby Digital & DTS
X X PCM 2Ch X X
1080P@50 1080P@50 1080i@50 1080P@25 1080i@50
1080P@60 1080P@60 1080i@60 1080P@30 1080i@60
1080i@50 1080i@50 1080i@50 1080i@50 1080i@50
1080i@60 1080i@60 1080i@60 1080i@60 1080i@60
720P@50 720P@50 720P@50 720P@50 720P@50
720P@60 720P@60 720P@60 720P@60 720P@60
576P 576P 576P 576P 576P
480P 480P 480P 480P 480P
576i 576i 576i 576i 576i
480i 480i 480i 480i 480i
  • Datavideo Kit Series 3 (Supports up to two PTC-150 cameras, SE-1200-or-SE-650, and HDR-1): download
  • Datavideo Kit Series 2 (Supports up to two PTC-150 cameras and SE-1200-or-SE-650): download
  • HDR-1: download
  • PTC-150: download
  • SE-650 / SE-1200MU: download
  • 1 x HDR-1 product
  • 1 x AD Switch DC 12V
  • 1 x USB Thumb Drive
  • 1 x Thank You Card
